Lapping Length vs. Development Length in Steel Reinforcement
In this post, you are going to understand the differences between lapping length and development length in steel reinforcement.
You are also going to learn what development length is, the purpose of overlapping in reinforcement, and how lap length is determined, which is important for students, engineers, or anyone looking to understand these essential construction terms
What is development length in steel reinforcement?
Development length is the extra length on a steel bar meant to transfer load from the steel bar to the concrete.
What is lapping length in steel reinforcement?
Overlap length means this length that transfers load or stress from one steel bar to another
Then the other hand, Overlap length means this length that transfers load or stress from one steel bar to another

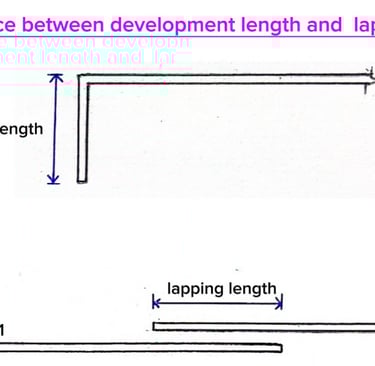

The standard length of the steel bar market is 12 m, so when we are working on structural elements more than 12 m, say 20 m, there is a need to join 2 steel bars at some point, and that’s why there is a need for the overlap. one steel bar will be coming like this and another one will be coming from this direction like this; this distance in the middle here is what we call the overlap
This will be the position of the overlap, or lapping position, in columns; this is the lapping position for top bars in beams, and this is the lapping position for the bottom.
And this will be the lapping position for top bars in the slab. The overlapping position in slabs should not be close or near supports and also not at the idspan of the slab
There are several methods to find out the development length, including the commonly used ones. ld. = 41d where ld. is the development length, 4 is constant and d is the diameter of the steel bar
Then on the other hand, Overlap = 50D, where 50 is a constant and d is the diameter of the steel bar.
For example, if the diameter of the steel bar is 12 mm, overlap = 50 x 12 = 600 mm; for 16 mm, it will be 50 x 16 = 800 m.
In summary, development length helps to safely transfer load or stress from the steel bar to the concrete, whereas the overlap length helps to safely transfer load or stress from one steel bar to another.
The thumb rule formula for development length is 4ld, whereas the formula for overlap is 50d.
Overlapping length is denoted as l, whereas development length is denoted as ld
